pure nickel wire Stainless steel braided High temperature resistant cable GN500-03-P
Operate temperature: -60degree to+600degree

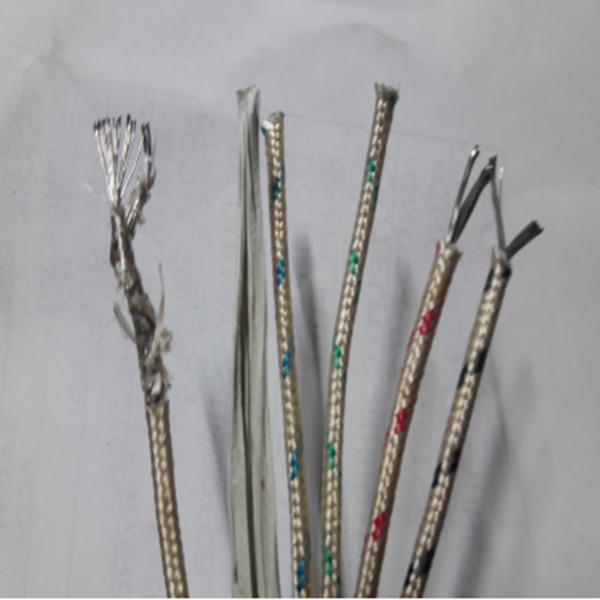

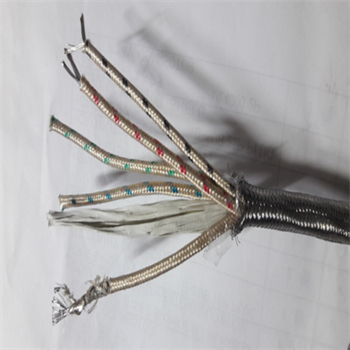

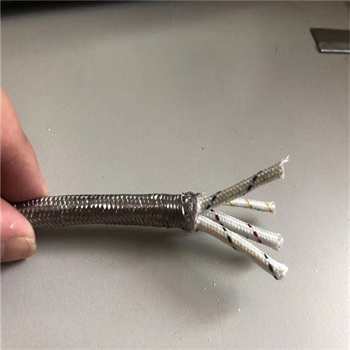

Cable Construction: pure nickel wire + glass fiber + mica + glass fiber+Stainless steel braided
1) Rated Voltage: 300V/500V
2) Rated Temperature:-60degree to+600degree
3) Conductor: Nickel
4) Insulator: Fiber Glass, High Temperature Coating
5)Shield:Steel Stainless wire
Used for electric heating,petrochemical,electrical and mechanical equipment,power plant,drying pathdrying room,heating source for lighting,electric appliances and other high temperature areas.
pure nickel wire Stainless steel braided High temperature resistant cable GN500-03-P
Cable type | Conductor construction | Insulation Thickness (mm) | Shielding Density% | OD(mm) | Max DC Resis at 20℃（Ω/km） | Control of hazardous |
3*0.75 | 24/0.20 | 0.6±0.1 | >85 | 6.0±0.3 | 26.7 | Meet ROHS instructions |
3*1.0 | 32/0.20 | 0.6±0.1 | 6.3±0.3 | 20 | ||
3*1.5 | 30/0.25 | 0.65±0.1 | 7.2±0.3 | 13.7 | ||
3*2.5 | 50/0.25 | 0.7±0.1 | 8.4±0.3 | 8.21 |
