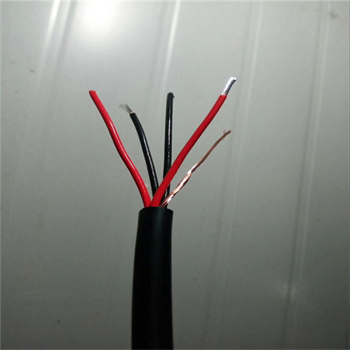

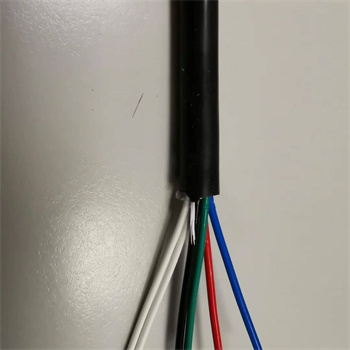

AFFB TEFLON HIGH TEMPERATURE WIRE

DETAILS

TECHNICAL DATA

Jacket:FEP/PFA Telfon

Insulator:FEP/PFA Telfon

Conductor:Tinned or Silver Copper

Temperature Range:-60℃~+200℃/250℃

Rated Voltage:300V/500V

O.D.Tolerance: ±0.1mm

Colour:White-Blue-red-Black-Yellow-Green-Transparent-Yellow/Green

Used at AC rated voltage 300V/500V or below with various movable electric

machines,steel plant,aviation,power plant pertrochemical industry and outdoor lighting of high temperature area.

AFFB TEFLON HIGH TEMPERATURE WIRE

Core number Section (㎜²)	Conductor Construction	Insulation (mm)		Jacket(mm）		Max. Conductor Resistance DC20℃(Ω/㎞)
Core number Section (㎜²)	Conductor Construction	Thickness	Outer Diameter	Thickness	Outer Diameter	Max. Conductor Resistance DC20℃(Ω/㎞)
2×0.03	1/0.20	0.10	0.40	0.15	0.7*1.1	560
2×0.05	1/0.25	0.10	0.45	0.15	0.75*1.20	386.9
2×0.07	1/0.30	0.15	0.60	0.25	1.10*1.70	245
2×0.12	1/0.40	0.20	0.80	0.20	1.20*2.0	146.9
2×0.2	1/0.50	0.25	1.0	0.25	1.50*2.50	94
2×0.12	7/0.15	0.20	0.85	0.25	1.40*2.20	150
3×0.12	7/0.15	0.20	0.85	0.30	1.45*3.20	150
4×0.12	7/0.15	0.20	0.85	0.30	1.45*4.0	150
2×0.2	7/0.20	0.15	0.90	0.25	1.40*2.30	83.5
3×0.2	7/0.20	0.15	0.90	0.30	1.40*3.30	83.5
4×0.2	7/0.20	0.15	0.90	0.30	1.40*4.20	83.5
2×0.35	19/0.16	0.25	1.30	0.30	1.90*3.20	49.5
3×0.35	19/0.16	0.25	1.30	0.30	1.90*4.50	49.5
2×0.5	19/0.18	0.25	1.40	0.25	1.90*3.30	36.0
3×0.5	19/0.18	0.25	1.40	0.30	2.0*4.80	36.0
2×0.75	19/0.23	0.25	1.70	0.30	2.30*4.0	22.7
2×1	19/0.26	0.25	1.80	0.30	2.40*4.20	19
2×1.5	19/0.32	0.30	2.25	0.30	2.85*5.10	11.7
2×2.5	19/0.41	0.40	2.80	0.40	3.60*6.40	6.86
